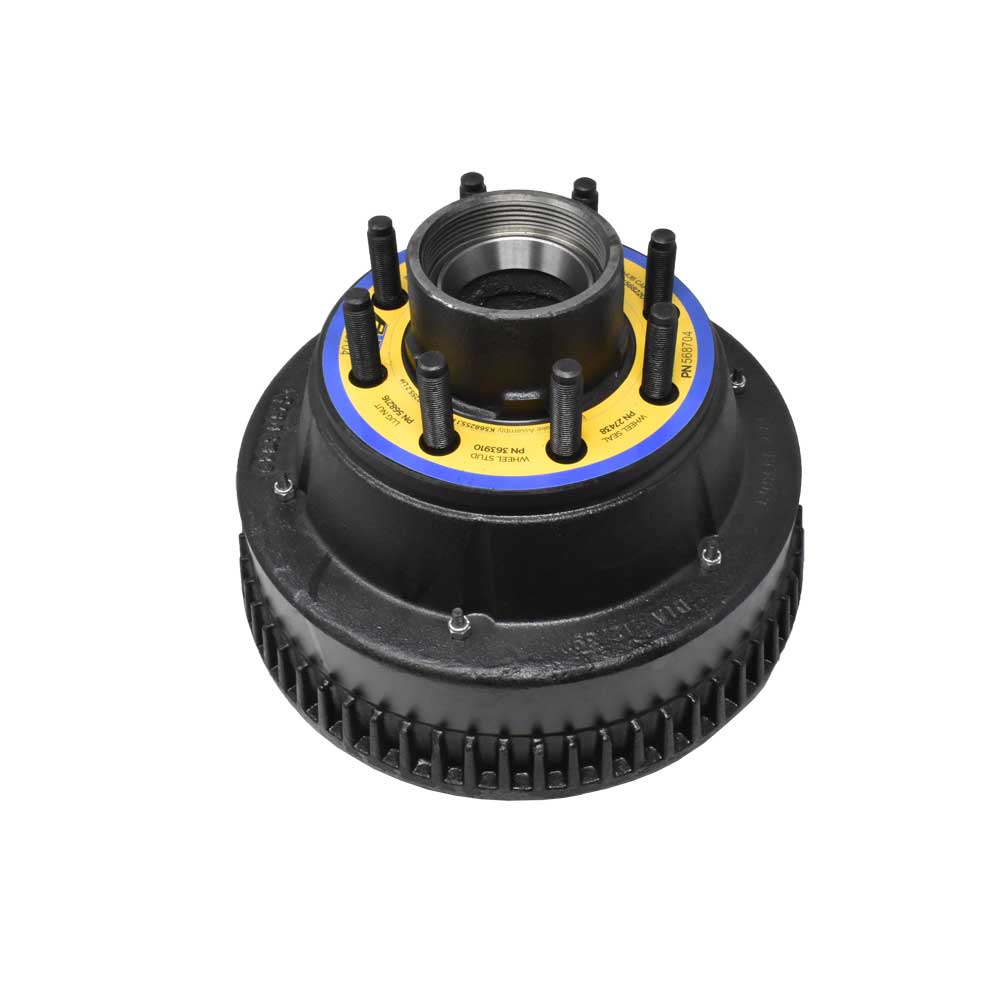

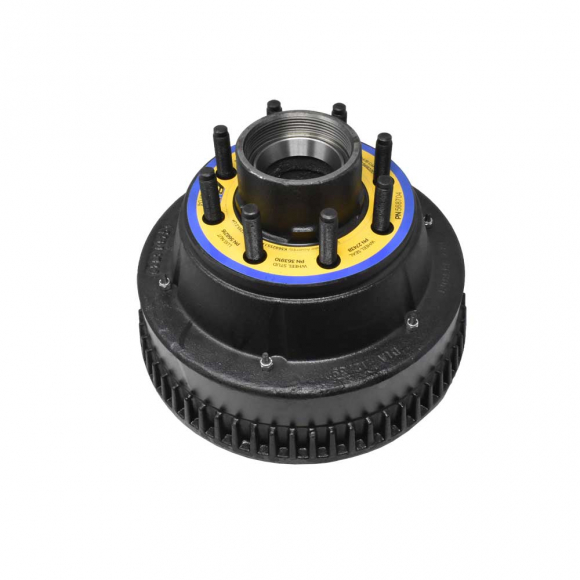

Thumbnail Filmstrip of Stud Piloted 10K Hub/Drum, 8 on 6.50″ Bolt Circle, Oil Bath, Replaces Alko 008-481-05 Images
- Stud Piloted Hub/Drum For Electric or Hydraulic Brakes
- Fits Alko/Hayes 10K GD Axles
- Drum Diameter: 12-1/4"
- Brake Shoe Width: 3-1/2"
- Wheel Studs: 8
- Stud Size: 5/8"
- Bolt Circle: 6.50"
- Hub Pilot: 4.75"
- Casting Number: 7290
- Uses K568220 Hub Cap (Not Included)
- Uses 27438 Seal (Not Included)
- Uses 28580 & 25580 Bearing Cones (Not Included)
- Uses M1266 wheel nut for stud piloted applications. (Not Included)
- Replaces Obsolete Alko 008-481-05 Hub/Drum
- Includes 28521 Inner Cup, 25520 Outer Cup, 5/8″ Studs & Bolt On Armature Plate For Electric Brake Applications
- This hub is used on stud piloted applications. Do not confuse with the 568270 hub that is used on hub piloted applications
- This hub used coined wheels which are now obsolete. You would now use a flat faced 1727925 wheel with this hub
- Cross References: 568704, 008-481-05, 00848105, 08-481-90, 0848190, K08-481-90, K0848190, 10788, 568704PTP, 99865-1P475AB, 998651P475AB, A568704, K10788, K568704
