Thumbnail Filmstrip of Hub & Drum Assembly for Dexter 5.2K - 7K Axles with 12" x 2" Brakes, 8 on 6.5" BC, 9/16" Studs Images

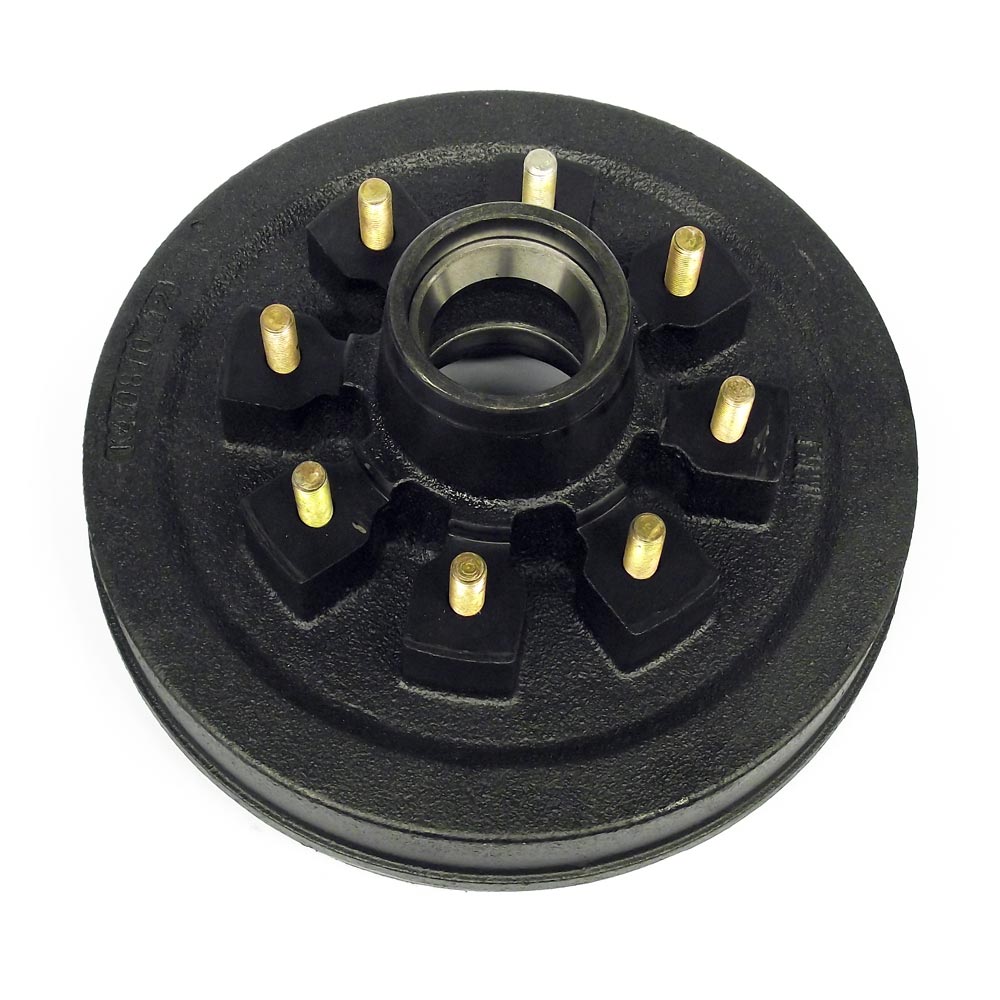

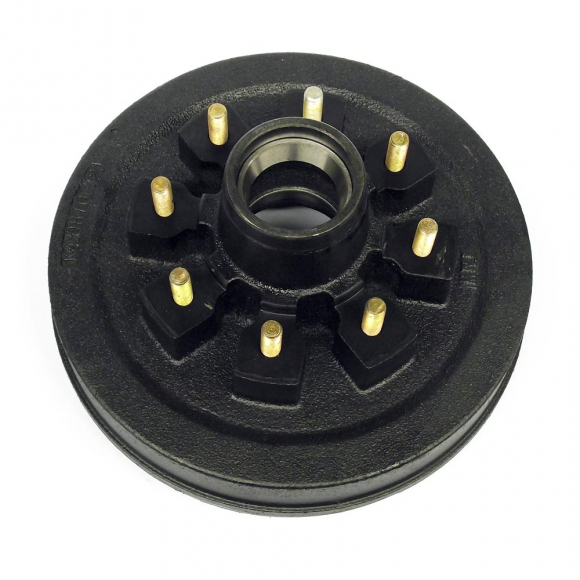

- Hub & Drum Assembly
- Eight 9/16" studs on 6.5" bolt circle
- Brake Size: 12" x 2"
- Capacity: 3,500 lbs.
- Inner Bearing Cone/Cup: 25580/25520 (Supplied with cup only, installed)
- Outer Bearing Cone/Cup: 14125A/14276 (Supplied with cup only, installed)
- Seal: 1010 (Grease, Dexter & Reliable) 1054 (Grease, Hayes) or 1063 (Oil equivalent to 1054 seal) (Not Included)
- Hub Cap: 2139 (Not Included)
- Replaces Dexter# 008-219-13
- Cross References: 821913, 8-219-13, 00821913, 821913, 00821913, 00821991, 00821993, 821991, 821993, D865SW916, G10819, G1081912
