Thumbnail Filmstrip of Hub & Drum Assembly for Dexter 2.3K - 3.5K Axles, 10" x 2-1/4" Brakes, 5 on 4.5" Bolt Circle Images
- Hub/Drum for Dexter 2.3K - 3.5K Axles

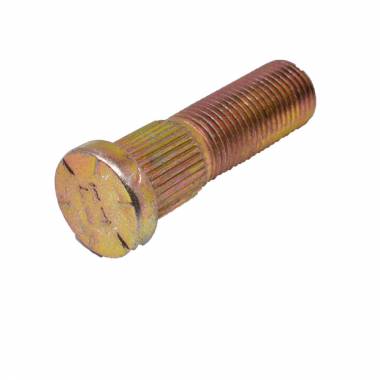

- Five 1/2" studs on 4.5" bolt circle
- Brake Size: 10" x 2.25"
- Capacity: 1,750 lbs.
- Inner Bearing Cone/Cup: L68149/L68111 (Supplied with cup only, installed)
- Outer Bearing Cone/Cup: L44649/L44610 (Supplied with cup only, installed)

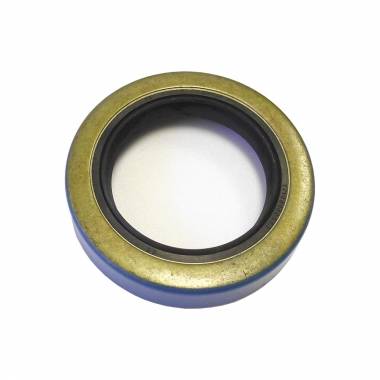

- Seal: 1019 (Not Included)
- Hub Cap: 213 (Not Included)
- Replaces Dexter# 008-247-05
- Cross References: 82475, 8-247-05, 00824705, 824705, 126003, 170703, 008-247-05, 09080240, 10300, 8207, 8247, 84546, 84546UC3, HD1000, K21220, K2122012, 09080607, 8490, 9080607, 90831
