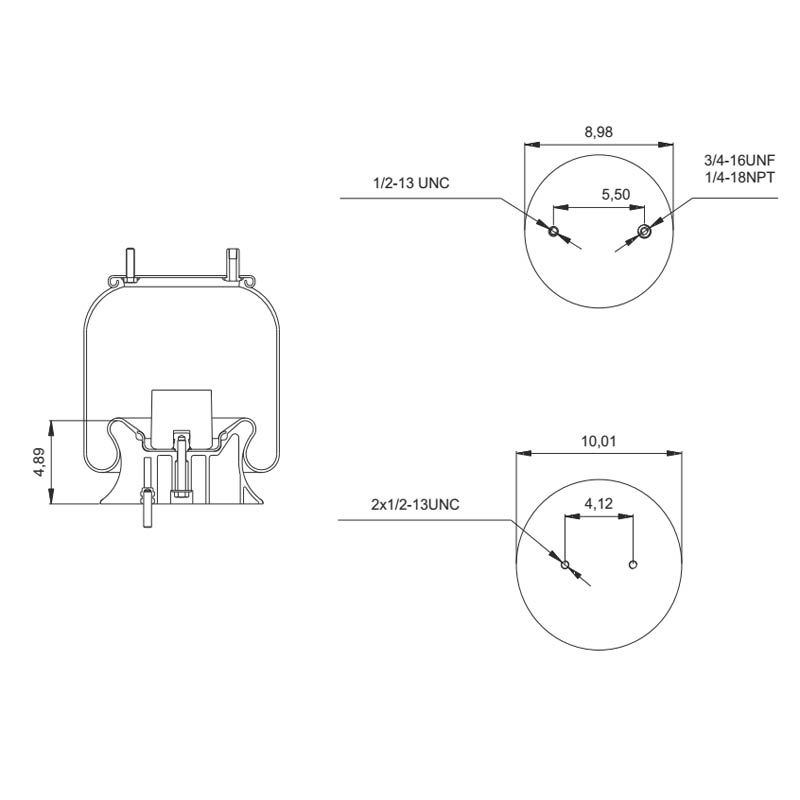

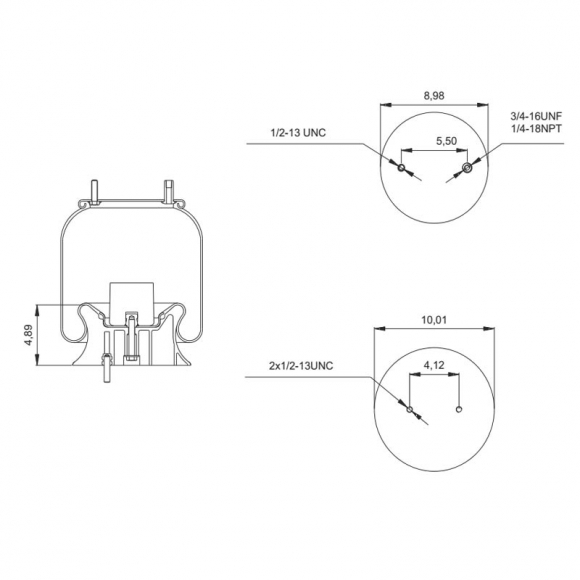

- Reversible Sleeve Air Spring
- Top Plate: 8.98" O.D.
- Top Plate Mounting: (1) Combination Stud/Air Inlet 3/4" O.D. (Male) (16) - 1/4" I.D. (Female) NPT - (1) Stud 1/2" (13) - 5.50" Center to Center
- Bottom Piston: 10.01" O.D.
- Bottom Piston Mounting: (2) 1/2" (13) UNC Studs - 4.12" Center to Center
- Extended Height: Uninflated - 20.50"
- Collapsed Height: 7.20"
- Internal Bumper: Yes
- Goodyear Bellows Number: 566-24-3-038
- Goodyear Part Number: 1R12-188
- Firestone Bellows Number: 1T15M-6
- Firestone Part Number: W01-358-9223
- Spring Pro Bellows Number: 889223
- Replaces Reyco 12884-01, Reyco 12884-01A (102AR)
- Cross References: 9223, 1R12188, 1R12-188, 48195, 12884-01, 12884-01A, 8409, 48195-2, 570-09-223, 64275, 9 10-16 P 409, 910-16P409, 91016P409, W01-358-9223, W013589223, 102AR, 1288401, 1288401A, 1R12180, 1R12188, 8409, AS8409, 1R12188, 566243038, 1T15M6, 48195-2, 481952, 1288401, 1288401A, 1003589223C, 57009223, 1R12903, 9 10-16 P 409, 910-16P409, 91016P409, 910175P733, 910B175P733, C01-358-2149, C013582149
