Thumbnail Filmstrip of Air Bag - Replaces Hendrickson S20124 and Firestone W01-358-9265 Air Springs Images
- Reversible Sleeve Air Spring
- Piston Material: Steel

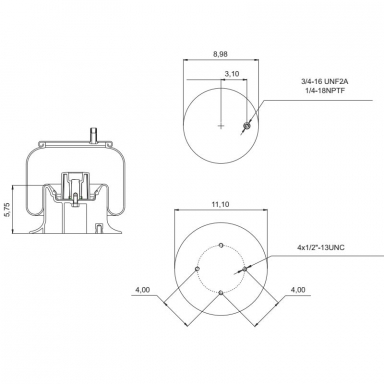

- Top Plate: 9.00" O.D.
- Top Plate Mounting: (1) Combination Stud/Air Inlet 3/4" O.D. (Male) (16) - 1/4" I.D. (Female) NPT
- Bottom Piston: 11.10" O.D.
- Bottom Piston Mounting: (4) 1/2" - (13) Threaded Holes - 4.00" Center to Center
- Extended Height: Uninflated - 24.70"
- Collapsed Height: 7.30"
- Internal Bumper: Yes
- Spring Pro Bellows Number: 889265
- Goodyear Bellows Number: 566-24-3-066
- Goodyear Part Number: 1R12-375
- Firestone Bellows Number: 1T15MM-9
- Firestone Part Number: W01-358-9265
- This air bag has 1 stud on top and a 4-hole 11" wide base
- Replaces: Hendrickson Trailer S20124, Hendrickson Trailer HT-250T, Hendrickson Trailer C20413 (rotate piston to 45 degrees), Hendrickson Trailer Ht-250U, Hendrickson Trailer HT-250U-Y (9Y-001)
- Cross References: 9265, 889265, 1R12375, 1T15MM9, NAD25396, 8435, C20124, S20124, C30124, W013589265, W01 358 9265, 1R12-375, 64288, 9 10-19 P 435, 910-19P435, 91019P435, M3524, M3524A, 1R12375, 1T15MM9, 91019P435, NAD25396, 8435, C20124, S20124, S20413, 1R12375, C30124, TAS9265, 566243066, 6364, 1T15K2, 1T15M9, 1R13038, W01-358-9265, W013589265, C20413, HT-250T, HT250T, HT-250U, HT250U, HT-250U-Y, HT250UY, 1R121073, 9 10-19 P 435, 910-19P435, 91019P435, C01-358-2203, C013582203
