- Reversible Sleeve Air Spring

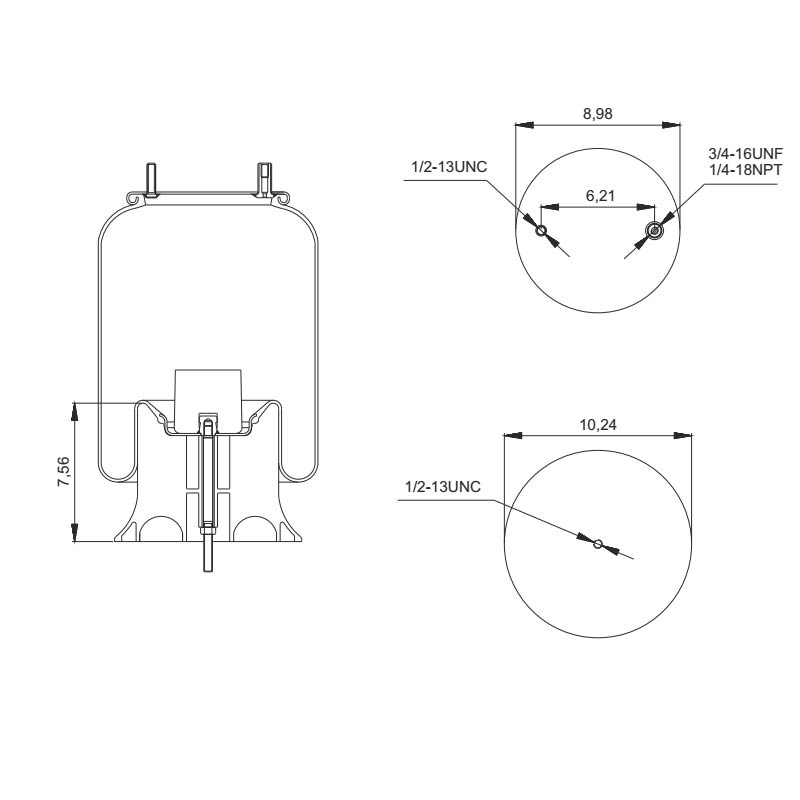

- Top Plate: 8.98" O.D.
- Top Plate Mounting: (1) Combination Stud/Air Inlet 3/4" O.D.(Male) (16) - 1/4" I.D. (Female) NPT - (1) Stud 1/2" (13) - 6.21" Center to Center
- Bottom Piston: 10.24" O.D.
- Bottom Piston Mounting: (1) Stud - 1/2" (13) UNC
- Extended Height: Uninflated - 27.60"
- Collapsed Height: 9.40"
- Internal Bumper: Yes
- Goodyear Bellows Number: 566-24-3-117
- Goodyear Part Number: 1R12-580
- Firestone Bellows Number: 1T15M-11
- Firestone Part Number: W01-358-9370
- Spring Pro Bellows Number: 889370
- Replaces Watson & Chalin AS-0057
- Cross References: 9370, 8448, 1R12580, 1R12-580, 64383, 9 10-21 P 448, 910-21P448, 91021P448, W01-358-9370, W013589370, AS0057, 3529370, FS9370, 5462-AS0057, WA01-9370C, WA019370C, WCAS0057, G2299370200, TR9370, AS77305, AS93700, WCMAS0057, 1T15M11, 1003589370C, AS00571G, 1R12440, 566243090, 1R12503, 566243117, 9 10-21 P 448, 910-21P448, 91021P448, C01-358-5129, C013585129
