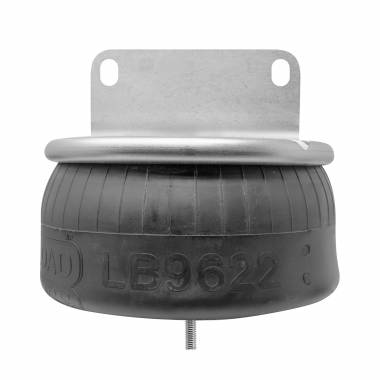

Thumbnail Filmstrip of Air Bag - Replaces Kenworth Airglide K303-22 & Firestone W01-358-9622 Air Springs Images
- Reversible Sleeve Air Spring
- Top Plate: 8.98" O.D.
- Top Plate Mounting: (1) Air Inlet 1-5/16" I.D. (Female) (12 UNF)
- Top Plate Includes a Two Hole Angled Mounting Bracket: 5.51" Center to Center & 2.25" From Top Plate to Center of Bracket Mounting Hole
- Bottom Piston: 8.20" O.D.
- Bottom Piston Mounting: (1) Stud - 1/2" (13) UNC - 2.76" Long
- Bottom Piston: 2.80" Long
- Extended Height: Uninflated - 10.80"
- Collapsed Height: 3.90"
- Internal Bumper: No
- Spring Pro Bellows Number: 889622
- Goodyear Bellows Number: 566-22-3-021
- Goodyear Part Number: 1R11-221
- Firestone Bellows Number: 1T15LA-1 or 1T15KW-1
- Firestone Part Number: W01-358-9622
- Replaces: Kenworth K303-22 (Airglide 200 1998 to 05-05-03), large air fitting with interconnected air springs
- Cross References: 9622, 889622, K30319, 9672, K30322, W013589622, W015449672, 1R11221, 1R11-221, K-303-22, K-303-28, 853765367, 9 9-9 S 537, 99-9S537, 999S537, 1T15KW1, 1T15LA1, 9672, 999P537, K30322, W013589622, W015449672, WO15449672, 8537, 1R11221, 1T15KWO, TAS9622, W01-358-9622, 1T15LA, K-303-22, K30319, 566223021, 1R11280, 9 9-9 P 537, 99-9P537, 999P537, 999S537, C01-358-2003, C013582003
