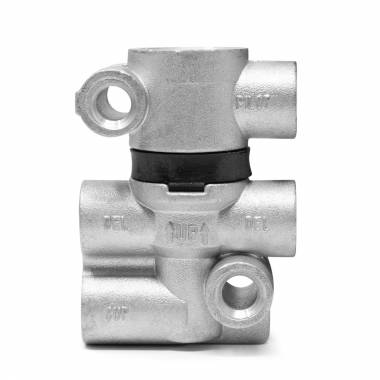

- 3-Way Pilot Valve
- Can be set to "Normally Closed" or "Normally Open"
- Normally Open Port: 1/4" NPT
- Normally Closed Port: 1/4" NPT
- Suspension Port: 1/4" NPT
- Pilot Port: 1/8" NPT
- Dimensions: 2-1/4" W x 2-1/4" D x 2" H
- Mounting Holes: 1/4" on 1-5/8" centers
- Use one valve per height control valve when plumbing a dump system
- Pilot air pressure can be switched manually or with an electric solenoid (not included)
- Direct replacement for Haldex 90554615 pilot valves
- Do NOT use in brake systems
- Cross References: 90554615, VS-38689, VS38689, VS-23588, VS23588, 334-2077, 3342077, 90554615-MD, E5HS5A743AA, E6HS5A743AA, 53-32374-000, 5332374000, 41902463, HAL90554615, 90054079, 90054206, 9941-0123, 99410123, F4A0238, 20QE2255, 20QE2255D, 5396-90554615, MID90554615, MBI90554615, 1609164C91, 905-54-615, S-10350, S10350, 401284, 29934, 80-107880, 80107880, NE-90554615, 767653254173, 8071546, 12900028, A-NB3068-2, AN30682, 35704-0008, 357040008, 334-1600, 3341600, E-4328, E4328, N177, AC005, JA2503-10-21, JA25031021, R304328, 9AR-1408, AR1408, AR-2657, AR2657, 034074, 17090054079, 1069164C91, A8024, 6450542, F4A0238, N20976, N20976A, 1609164C91, 90054206, 90054535, 90054547, 90555072, 23AS140, EM-34380, 3004535, 711050016, AS-1327, 034074, 32755479
