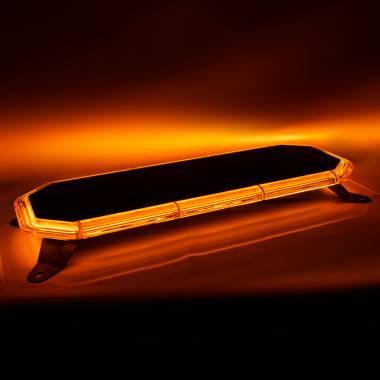

Thumbnail Filmstrip of 31" Low Profile Amber LED Warning Light Bar With 19 Flash Patterns, 10-30 Volt DC Images
- Low Profile Class 1 Amber Warning Light Bar
- Mount Type: Permanent (Includes Option of Bracket or Bolt Mount
- New V-Cut Optical Design
- 360 Degree Nova Optics
- LED Type: COB (Chip on Board)
- Wattage: 160
- LED Color: Amber
- Lens: Clear Polycarbonate Lens
- Aluminum Base & Cover
- Voltage: 10-30 Volt DC
- Length: 31"
- Width: 8"
- Height: 2-5/8" Tall With Mounting Feet Installed
- 16' 6" 3 Wire Power Cable
- Salt Spray Test Approved
- Vibration Test Approved
- Stainless Steel Mounting Hardware Included
- 19 Selectable Flash Patterns (Momentary Switch Not Included)
- Single Flash All Lights / SAE Class 1 / CA 13
- Double Flash All Lights / SAE Class 1
- Quad Flash All Lights / SAE Class 1
- Quint Flash All Lights / SAE Class 1
- Single Flash, All By Day / R65 Class 2, E-MARK
- Single Flash, All By Night / R65 Class 1, E-MARK
- Single Flash, Left/Right Alternative
- Quad Flash, Left/Right Alternative
- Single Flash, Outside In Alternative
- Quad Flash, Outside In Alternative
- Rotation, Slow Mode
- Rotation, Fast Mode
- Single, Odd / Even
- Patrol Mode, Left To Right Then Right To Left
- Arrow Flash, Left To Right
- Arrow Flash, Right To Left
- Airport Mode, Single Flash / ICAO Type C
- Airport Mode, Single Flash / ICAO Type D
- Steady On
Certifications
- SAE J845 Class 1 - The Society for Automotive Engineers highest brightness level of SAE Classification in the USA
- SAE J578 Amber - Color Specification for External Lighting Equipment of Motor Vehicles
- IP Rating: IP67 - Complete Protection Against Dust & Waterproof Up to One Meter
- ECE R65 Class 2 - Highest Brightness Level in Europe (both night and day intensity levels)
- ECE R10 - Meets Requirements For Electromagnetic Compatibility, This Light Bar & It's Cable Will Not Effect or Interfere With Any Other Device In Or Surrounding The Vehicle
- ICAO Type C Amber - International Civil Aviation Organization - Meets The Needs of Airport Warning Lights For Optical Angle & Flash Frequency on Mobile Airport Equipment
